220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable

Product Categories

Qingdao Run Sheng Lin Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

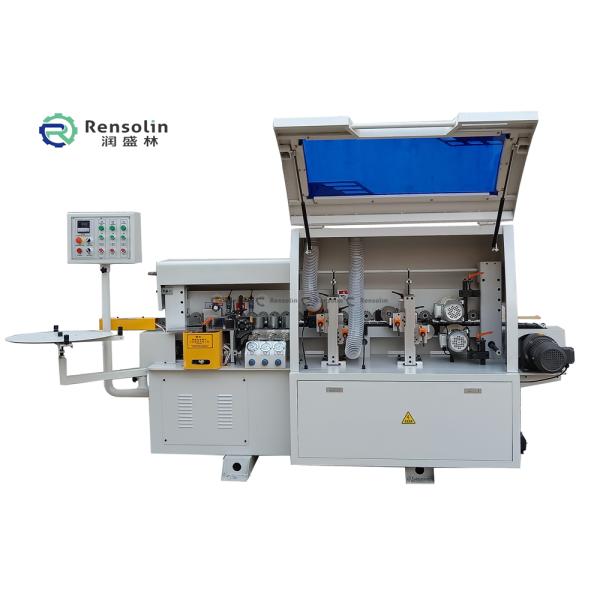

220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable

Name: 220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable
Brand: Rensolin
Price: 2 USD

Quality 220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable for sale

Place of Origin : China

Brand Name : Rensolin

Packaging Details : Wrapped film or wooden box

Supply Ability : 300Sets/Month

Price : $2,500.00/sets 1-2 sets

Certification : CE,ISO

MOQ : 1Set

Delivery Time : 5-7days

Payment Terms : T/T

Condition : New

Type : Edge Banding Machine

Voltage : 220v/380v/415v

Dimension(L*W*H) : 2750*750*1600

Power (kW) : 6kw

Weight (KG) : 1000 kg

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Advertising Company, plywood machinery

Warranty : 2 years

Function : gluing;fine trimming;scraping;buffing

Key Selling Points : Easy to Operate and durable

Panel Feed Speed(m/min) : 13m/min

Video outgoing-inspection : Provided

Warranty of core components : 2 years

Core Components : Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Engine

Usage : Plywood Production

name : edge banding machine

Air pressure : 0.6-0.8Mpa

voltage : 380V/220V/415V

Weight : 1000kg

Overall size : 2750*750*1600mm

Total power : 6kw

Feeding speed : 13m/min

Min width of wood : >=80mm

Min length of the wood : >=120mm

Edge band thickness : 0.4-3mm

Port : qingdao port,china

Contact Now

380V/220V/415V Semi Automatic Edge Banding Machine for Woodworking Plywood Production

Products Description

220V 415V Semi Automatic Industrial Edge Bander Woodworking Plywood Portable

Feature:

It is easy for operator to operate easily .
It mainly applied to the panel edge sealing of plywood,fiberboard,practice board and so on.
Advantage:
It solve the traditional manual mode and narrow.
This equipment has high precision in the machining process.

Product Paramenters

Edge Banding Machine	RSL 340
Key Word	Edge banding machine
Motor Power	6KW
Overall size	*27507501600*
Feed speed	13m/min
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. length of panel	≥120mm
Min. width of panel	≥80mm
Working air pressure	0.6-0.8 Mpa
Weight	1000KG

Functions

1 Glue and pressing

Through the processing center of the one-time forming of the glue pot heating sol, using the spiral structure of glue feeding

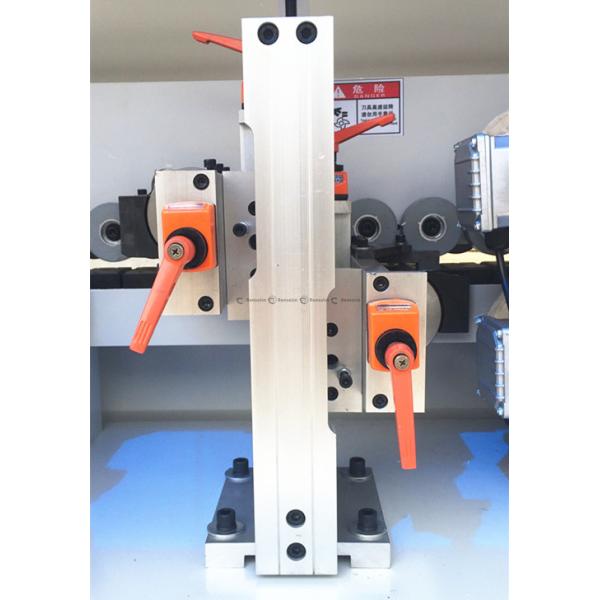

2 Fine trimming

Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip (such as acrylic edge strip), will not seal edge strip surface dark mark.

3 Scrapping

It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more
smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.

4 Buffing

Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing product

product advantages

1. Display Screen-DELTA BRAND PLC TOUCH SCREEN SYSTEM

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop to protect personal safety and stop machine operations in time.

2.CNC Laser cut whole machine body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing thestability of the machine.

3.Electrical part-Safety is important thing for you,for us!

Electrical appliances are very important and are related to the personal safety of workers. We use famous electrical appliances and high-quality electronic parts, and 100% of the electrical appliances have passed the electrical test. We have professional electrical engineers to design the optimal circuit to ensure the safe and reliable long-term operation of the entire line.

1.Electric Wires :Use imported motor and high quality electronic parts, Product seriation, multi-choice for customers.

2.Power off switch and Phase sequence protector:Avoid accidents that may be caused by the reversal of the machine installation,protect the safety of workers, and ensure the service life of the machine.

3.Transformer:Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.

4.Contactor:Switch on and off the circuit, low voltage release protection.

Products Effect Display

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.

PRE-SALE SERVICES:

1.Introduce and Provide detailed consultation of the machine.

2. Strict quality control system, warranty period.: 2years

3. Provide custom-made service offening good suggest and design idea to customer.

4. Welcome to visit our factory

SERVICES DURING SALES:

1.Fast delivery and 100% QC Inspection before shipmen
2. Install and debug the machine well in our factory

3. Provide safety package and shipping to clients

AFTER-SALE SERVICES:

1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.

3. Our sales team and senior engineer are ready for service for you .
